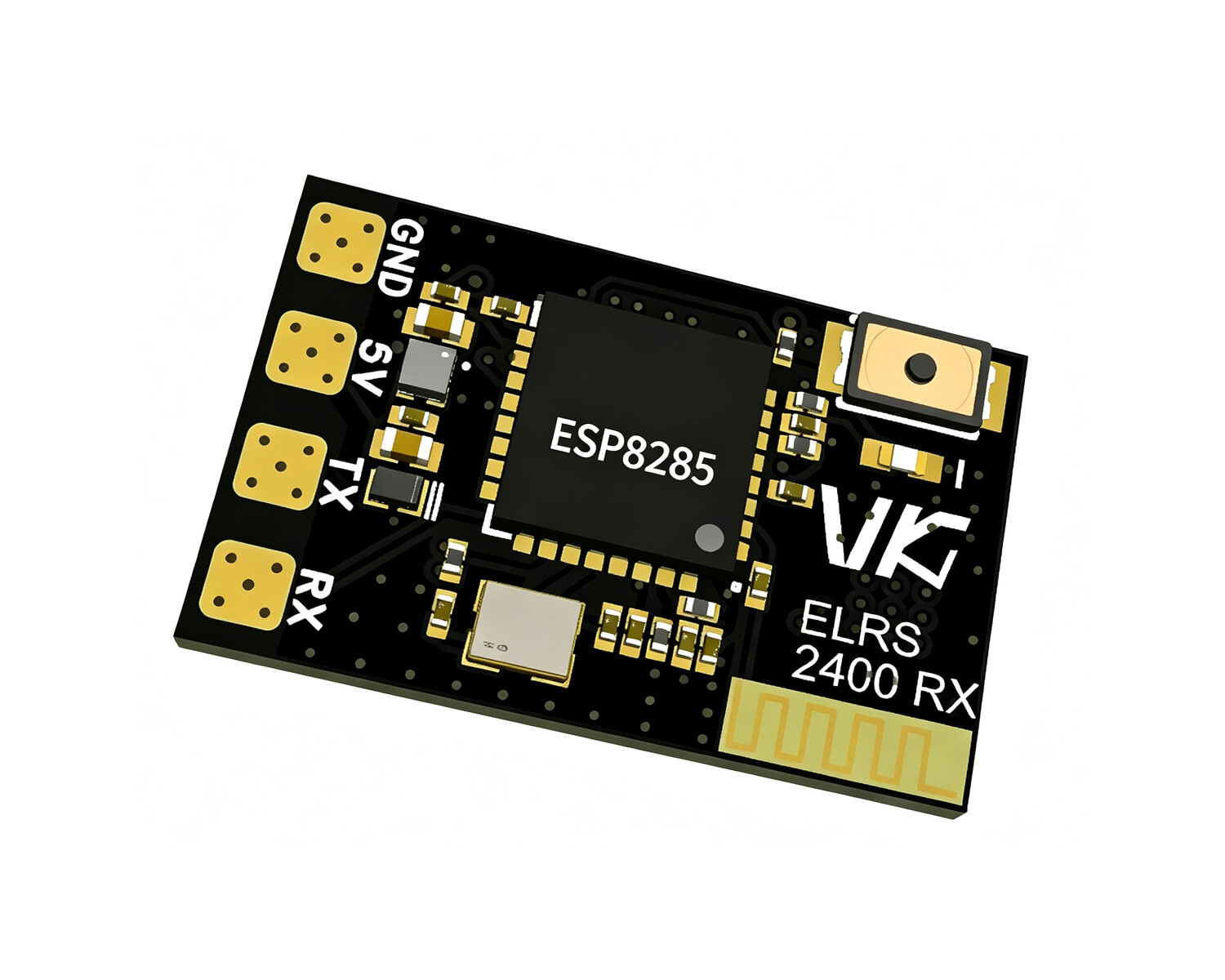

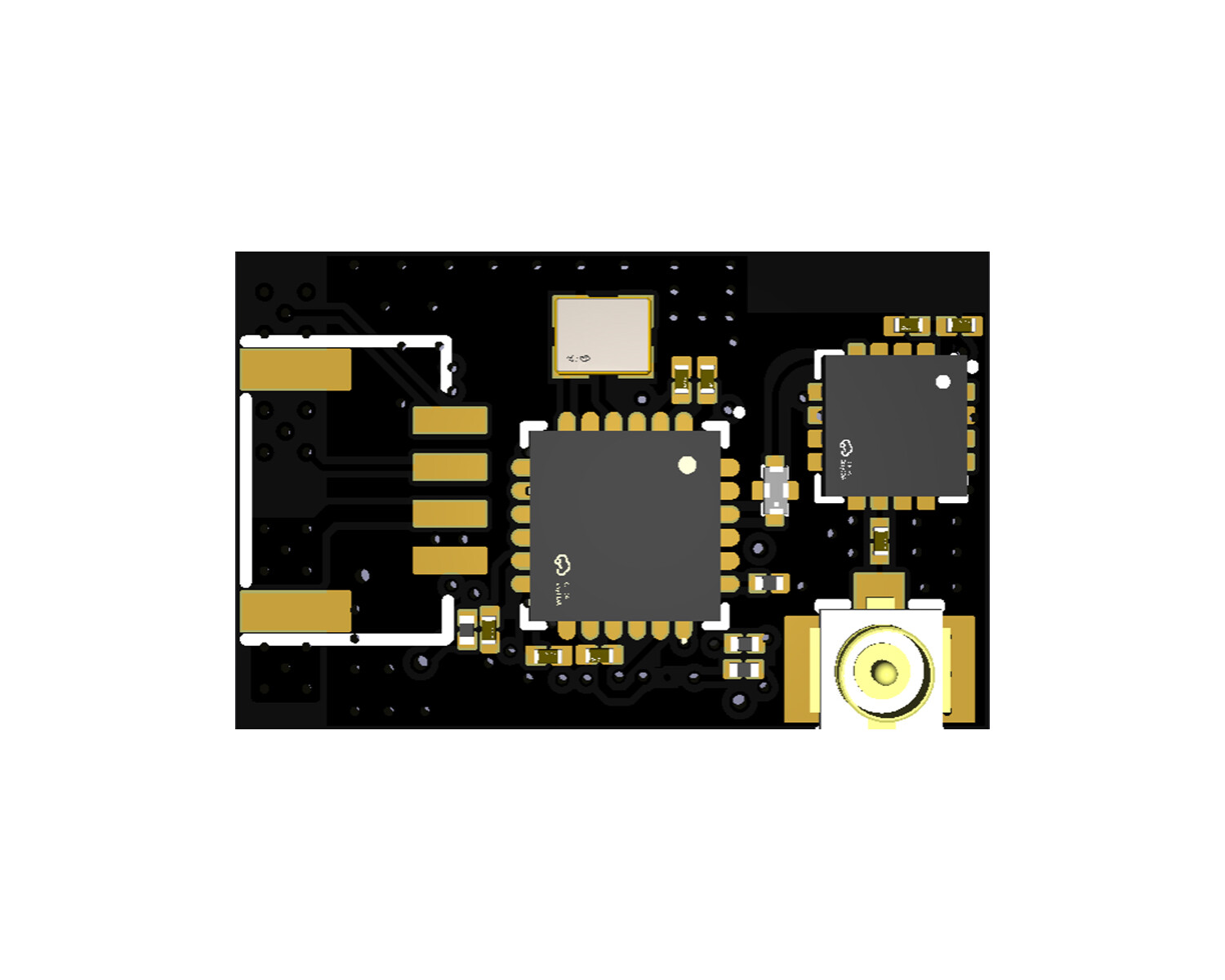

WKG-ELRS-2.4G NAAO RX
2.4GHz ELRS RX with Socket
- 2.4GHz Band
- SX1281 RF chip
- 100mW uplink
- High Refresh Rate 25-500Hz (D1000Hz)
Specifications
| Operating Frequency | 2.4GHz |
| chip | ESP8285/SX1281 |
| Uplink Power | 100 mW |
| Firmware | WKG-ELRS-2.4G NAAO RX |
| Communication Protocol | CRS |
| Supported Speed | 25-500Hz (D1000Hz) |
| Operating Voltage | 3.6V-5.5V |
| Weight | 1.6g |
| Size | 16.2×10.3mm |
Notes
- FPV drone
- RC airplane
- Pro Racing
Download
WKG-ELRS-DIV RX User Manual
PDF · 0.9 MB
