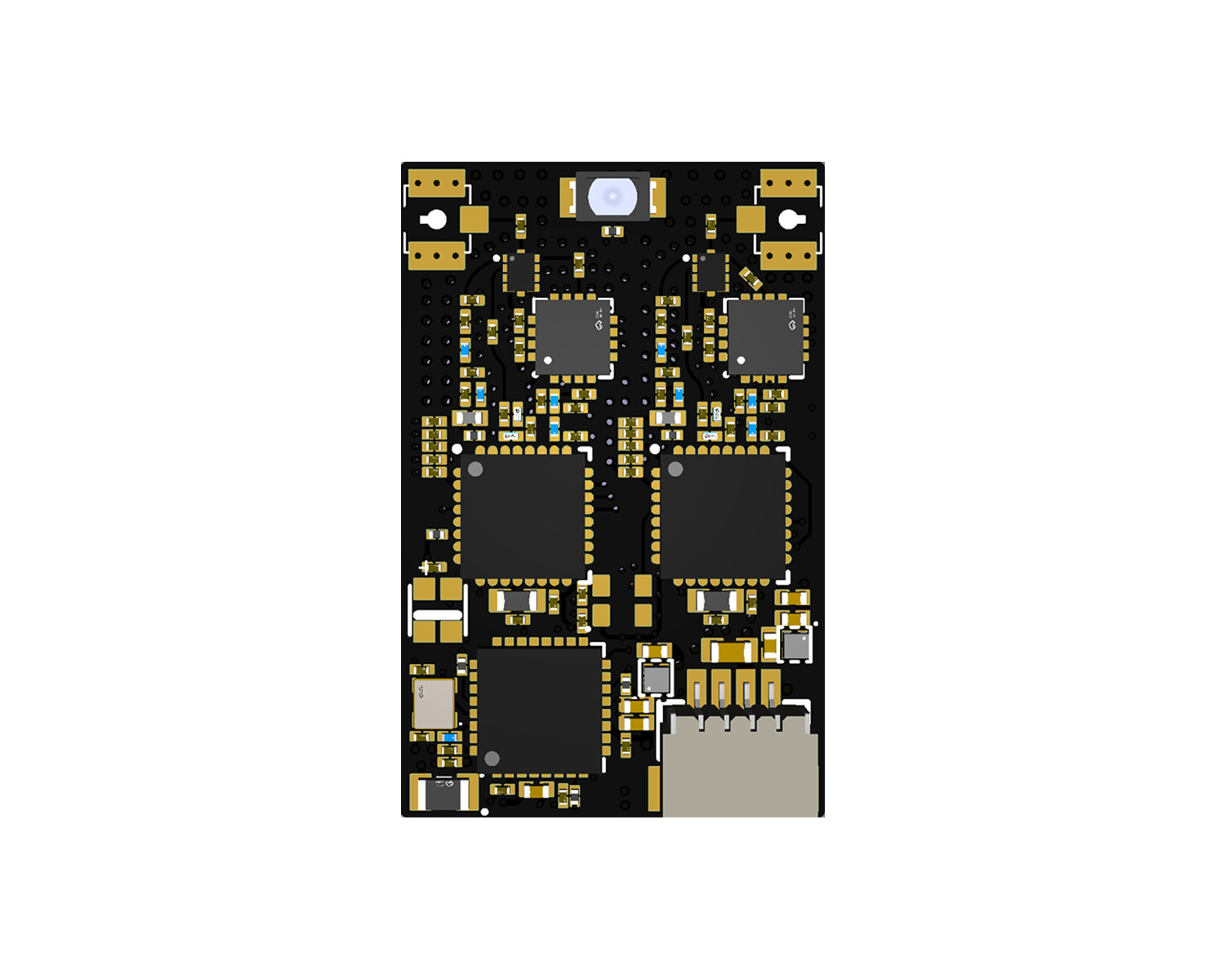

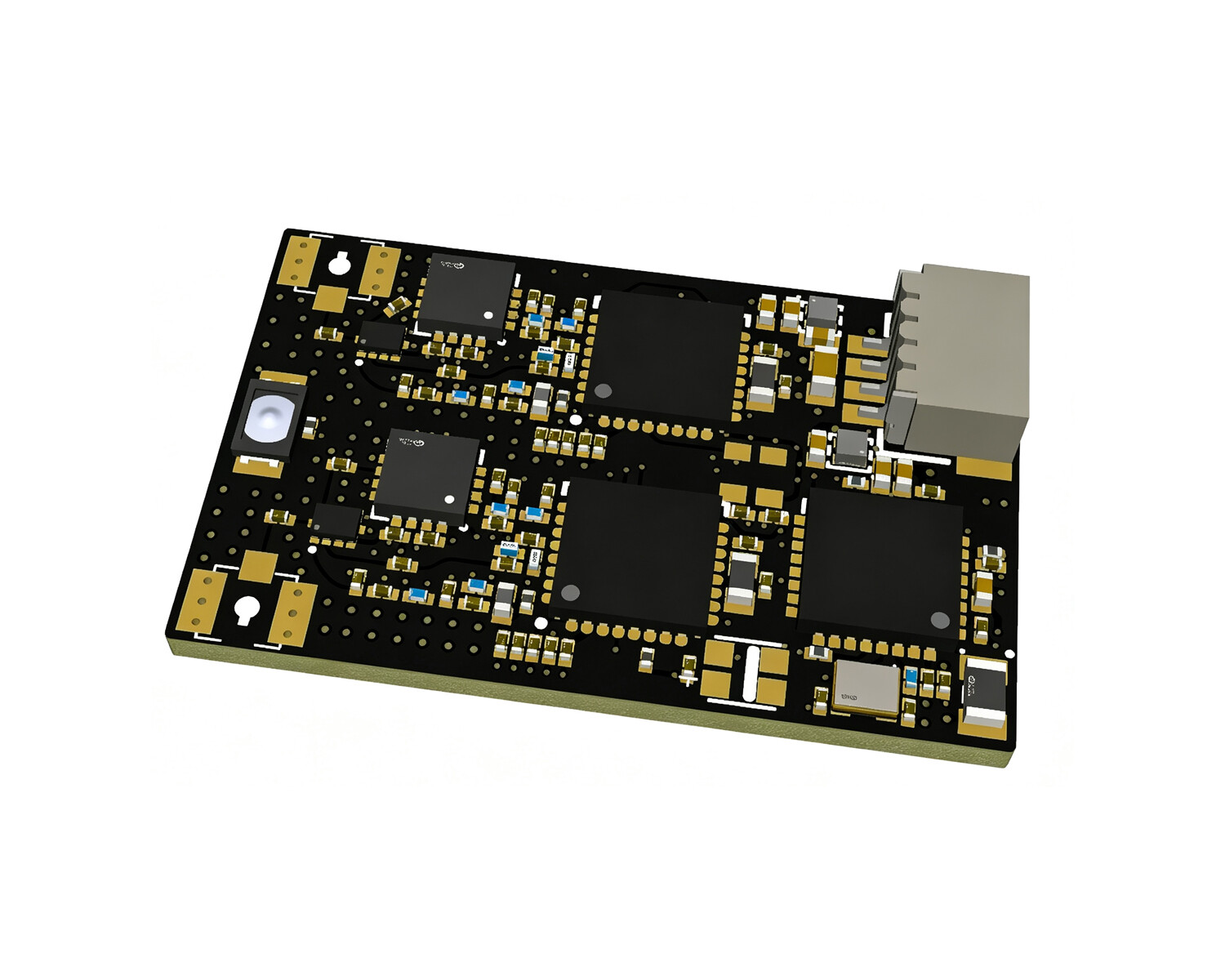

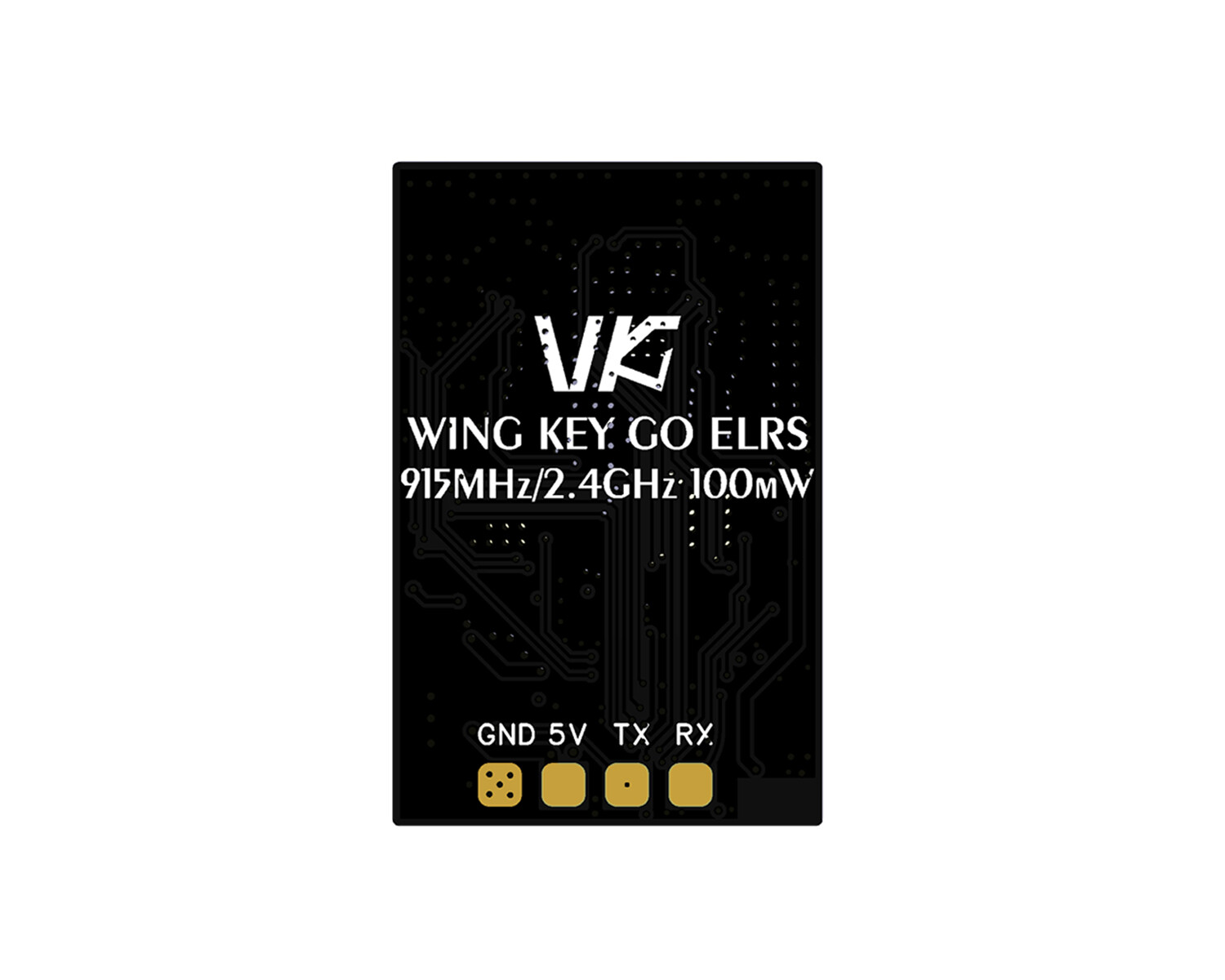

WKG-ELRS-LR3 Dual-Band RX
900MHz/2.4G 100mW ELRS Dual-Frequency Dual-Antenna Receiver
- 900MHz/2. 4G Dual-Band
- 100mW backhaul power
- Use TCXO (Temperature-Compensated Crystal Oscillator)
- The chip uses ESP32-C3 + LR1121*2.
Specifications
| Operating Frequency | 915MHz(sub-GHZ) Gemini, 2.4GHz Gemini, 91 5M+2.4G Dual-Band Mode |
| chip | ESP32-C3/LR1121*2 |
| Firmware | WKG-ELRS-LR3 Dual-Band RX |
| Communication Protocol | CRS |
| Supported Speed | 25Hz-1000Hz |
| Operating Voltage | 3.6V-5.5V |
| Weight | 1.6g |
| Size | 26.6×17.2mm |
Notes
- 1. Do not install the receiver near heat sources, such as video transmitters or electronic speed controllers (ESCs), which generate significant heat.
- The 2.Gemini receiver has high power consumption. USB power alone may be insufficient; we recommend using the 5V supply from the flight controller's BEC instead.
- 3. To use Gemini mode, pair it with a high-frequency head that supports Gemini mode.
Download
WKG-ELRS-LR3 Dual Band RX User Manual
PDF · 1.0 MB
WKG-ELRS-LR3 Dual-Band RX Firmware
Bank Identification Number · 128KB
